House Plan 039-00296
|
View the Floorplan

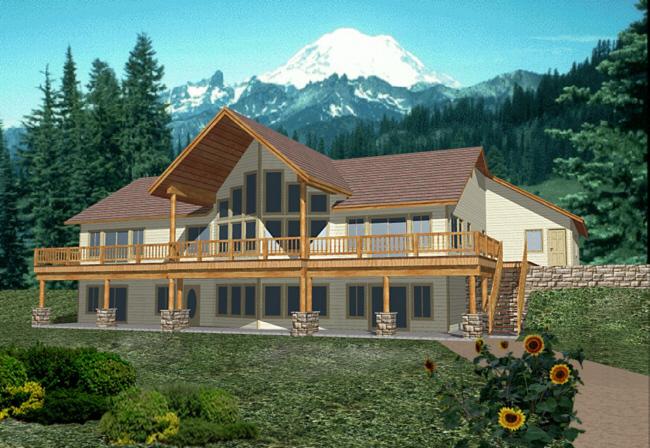

Rear Elevation Front Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Home Office
Laundry On Main Floor
Laundry Second Floor
Master On Main Floor
Media Room
Mud Room
Nook
Garage Type
Front Entry
Porch Type
Rear
|
|
| Square Footage: | 5,086 sq. ft. |
| First Floor: | 2,558 sq. ft. |
| Garage: | 840 sq. ft. |
| Basement: | 2,528 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Garages: | 2 car |
| Width: | 84ft. |
| Depth: | 74ft. |
| Height: | 21ft. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 7:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bathroom 1: |
11-6
x 8
x 9
|
| Bathroom 2: |
11
x 11-2
x 9
|
| Bedroom 2: |
14
x 12
x 9
|
| Bedroom 3: |
13
x 16-2
x 9
|
| Dining Room: |
14
x 14
x 9
|
| Front Entry: |
7-4
x 8
x 8
|
| Garage: |
29
x 29
|
| Great Room: |
21-6
x 18-6
x 9
|
| Home Office: |
10-2
x 12
x 9
|
| Kitchen: |
15
x 14-6
x 9
|
| Laundry/Mud Room: |
12
x 9
x 9
|
| Master Suite: |
16-4
x 14-4
x 9
|
| Mechanical/Laundry Room: |
17-8
x 15-10
x 9
|
| Media/Recreation Room: |
21-6
x 18-6
x 9
|
| Nook: |
16-8
x 10-8
x 9
|
| Sports Room: |
27-2
x 15-8
x 9
|
| Storage Room: |
10
x 11-2
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

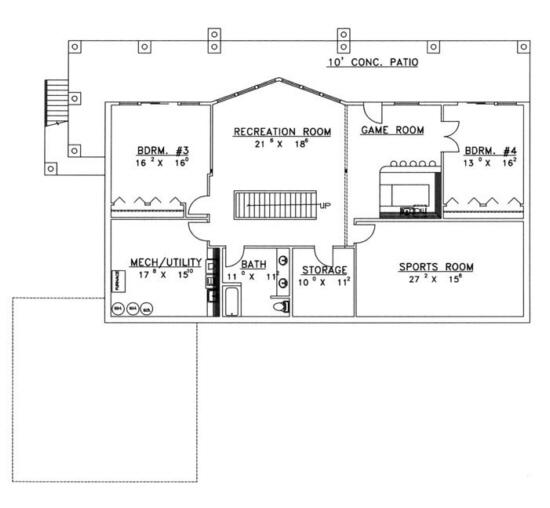

Basement Floor
Images Copyrighted by Designer

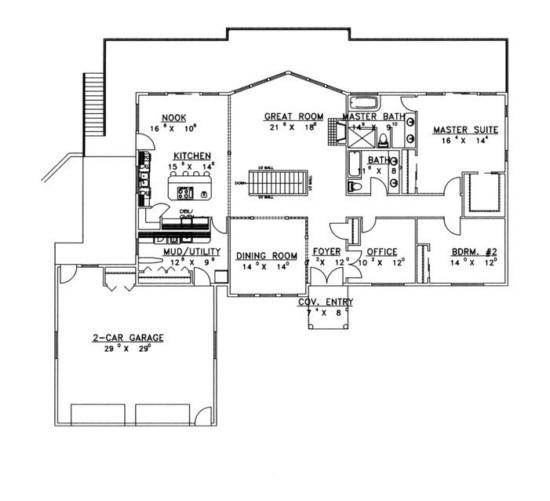

Main Floor
