House Plan 039-00283
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Home Office
Laundry On Main Floor
Loft
Master On Main Floor
Mud Room
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
Rear
Screened
|
|
| Square Footage: | 3,241 sq. ft. |
| First Floor: | 2,203 sq. ft. |
| Second Floor: | 1,038 sq. ft. |
| Basement: | 1,781 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 102ft.-9in. |
| Depth: | 84ft.-6in. |
| Height: | 35ft.-11in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
15
x 15
x 9
|
| Bedroom 3: |
15
x 13
x 9
|
| Den/Office : |
10
x 10
x 9
|
| Dining Room: |
15
x 14-8
x 9
|
| Family Room: |
2
x 18
x 9
|
| Foyer: |
8-10
x 14
x 9
|
| Garage: |
21
x 24
|
| Garage Shop: |
21
x 20
|
| Great Room: |
23
x 18
x 9
|
| Kitchen: |
15
x 13-6
x 9
|
| Laundry/Mud Room: |
12
x 8
x 9
|
| Loft: |
23
x 17-9
x 9
|
| Master Closet: |
6-2
x 10
x 9
|
| Master Suite: |
15
x 15
x 9
|
| RV Pad: |
22
x 12
|
| Sewing Room: |
21-2
x 12
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

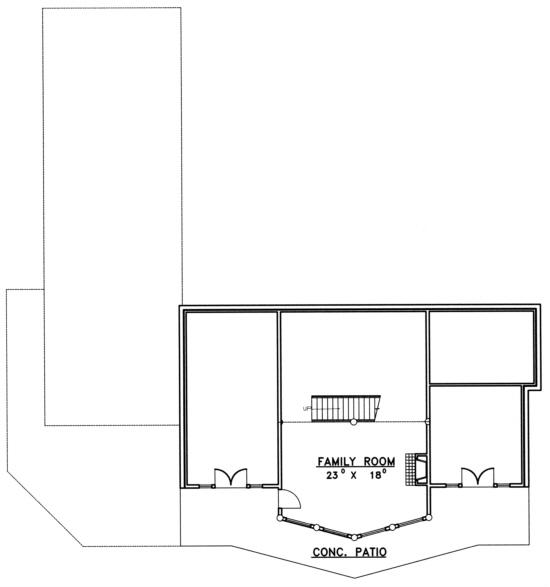

Basement Floor
Images Copyrighted by Designer

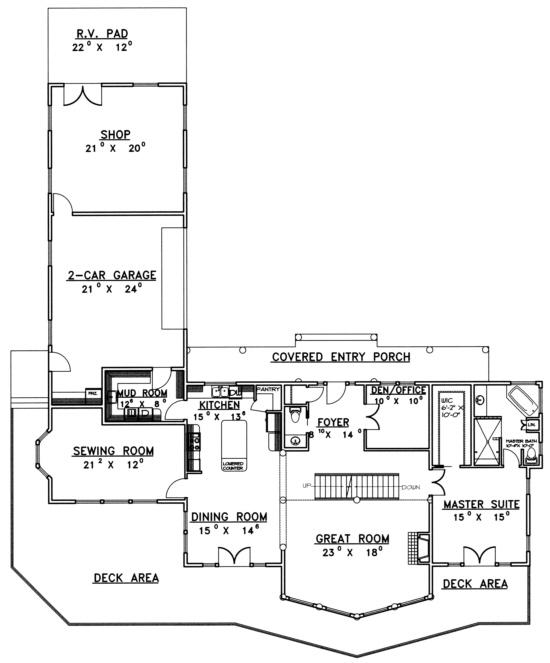

First Floor

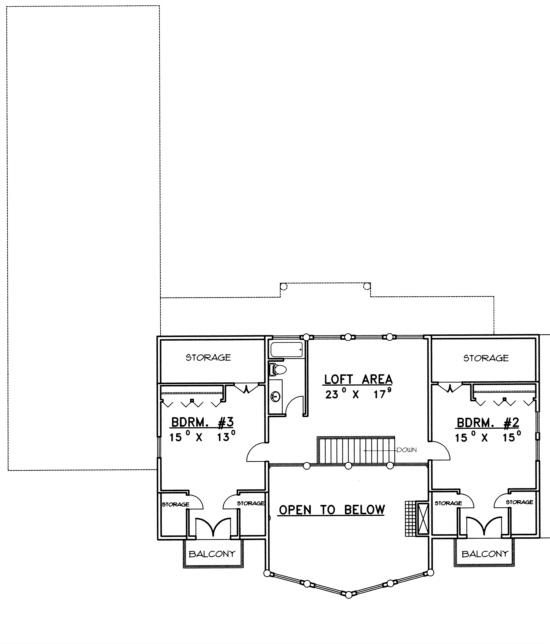

Second Floor
