Lake Front Plan 039-00170

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,272
Beds 3
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 55'
Depth 29'

Floorplan Drawings

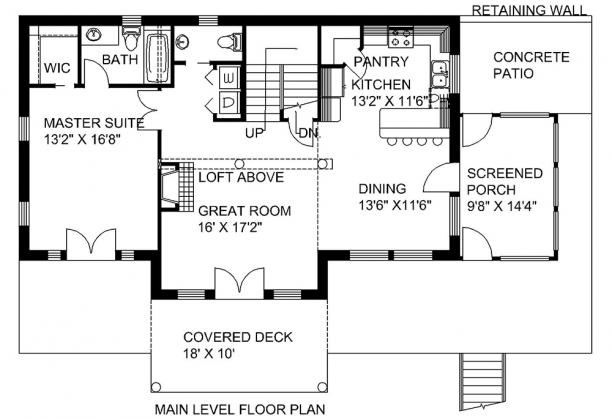

First Floor
First Floor for House Plan #039-00170

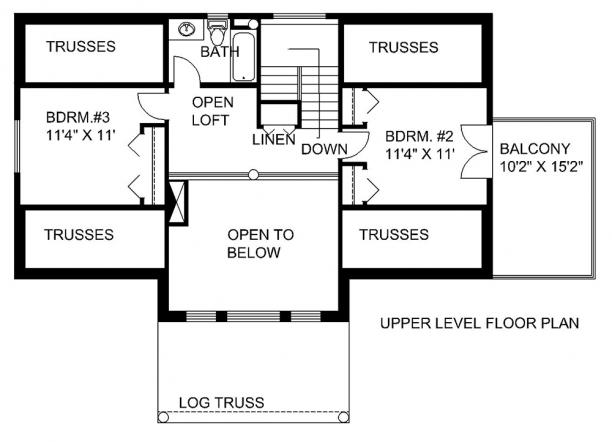

Second Floor
Second Floor for House Plan #039-00170

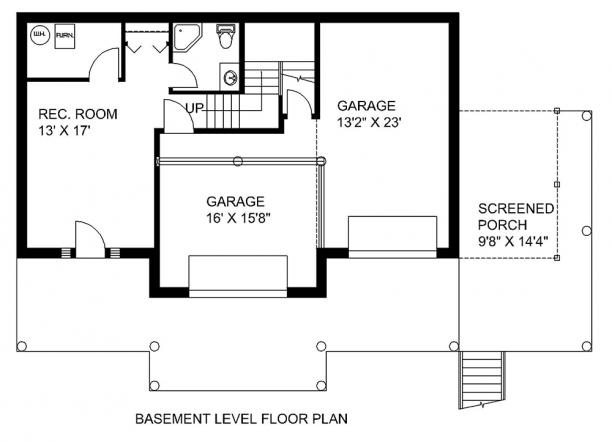

Basement Floor
Basement Floor for House Plan #039-00170


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This two story Rustic home commands a lakefront or mountain top view with its abundance of outdoor entertaining space and expansive use of window inserts. Large vertical wooden beams support gabled timber trusses forming a covered patio space surrounded by open railing and extensive decking. An interior floor plan is comprised of approximately 2,272 square feet of living space that contains three bedrooms and three plus baths. The home’s drawings include a slab foundation as well as the basement foundation which features an additional 470 square feet of space that includes a large covered exterior patio, 727 square feet of garage space, a large recreation room and a half bath. Entrance into the home’s main living floor is off the covered patio into the great room where there is a warming fireplace and fabulous interior entertaining space that conveniently flows onto the exterior entertaining space. The great room is open to the family friendly kitchen where a peninsula breakfast bar is highlighted and there is plenty of additional counter and cabinet space and an oversized corner pantry. The dining room is perfectly suited for hosting special family occasions and events and features French door access onto both the outdoor deck and a screened porch that is ideal for dining al fresco. The main level master suite offers dual French door access into the master bedroom and exits onto the outdoor deck. There is a large master walk-in closet at the rear of the space and the master bath features a large vanity space and a tub/shower combination. Beyond the great room is the powder room for guests, a laundry nook and the second story staircase.
The second story landing features an open loft which overlooks the main living space below. This loft space could function as a playroom for the children or a private family entertainment space. Flanking the loft space are two spacious bedrooms; each contains ample closet space and the second bedroom has access to a private balcony. The second level is completed with a shared hall bath and linen closet. Gorgeous craftsmanship and excellent outdoor space defines the exterior façade while a fully functional and efficient interior floor plan offers well appointed and spacious rooms.
