House Plan 039-00169
|
View the Floorplan

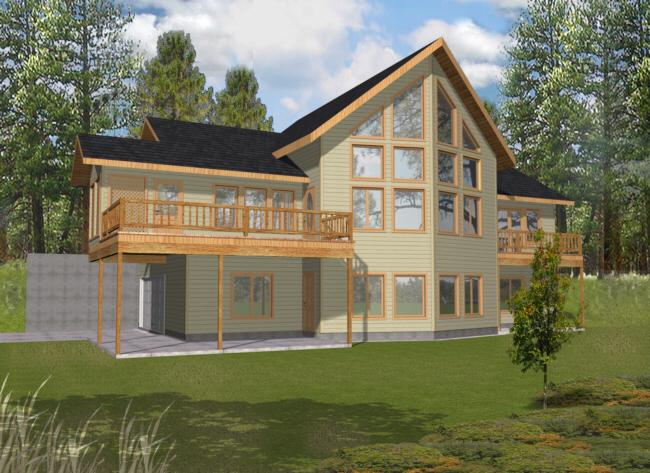

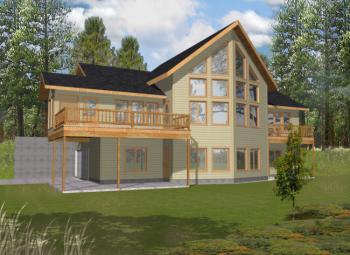

Rear Elevation Front Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
Screened
|
|
| Square Footage: | 3,288 sq. ft. |
| First Floor: | 1,743 sq. ft. |
| Second Floor: | 338 sq. ft. |
| Garage: | 536 sq. ft. |
| Basement: | 1,207 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 65ft. |
| Depth: | 36ft.-6in. |
| Height: | 25ft.-5in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
15-8
x 12-10
x 9-1
|
| Bedroom 3: |
17-4
x 12-10
x 9-1
|
| Den: |
11
x 10-8
x 9-8
|
| Dining Room: |
9
x 13-10
x 9-8
|
| Great Room: |
24
x 16
x 9-8
|
| Kitchen: |
10-8
x 13-8
x 9-8
|
| Loft/Studio: |
17
x 14-6
x 10-3
|
| Master Suite: |
15-8
x 15
x 9-8
|
| Mechanical Room: |
11-6
x 6-2
x 9-1
|
| Screened Porch: |
8-8
x 9-4
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

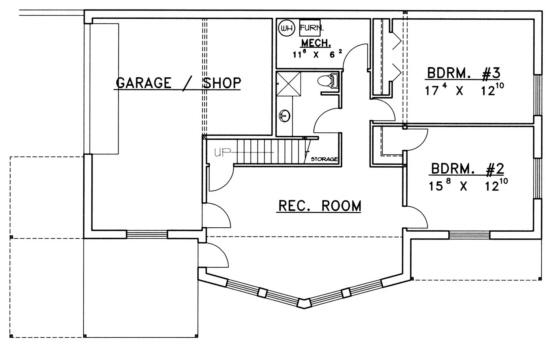

Basement Floor
Images Copyrighted by Designer

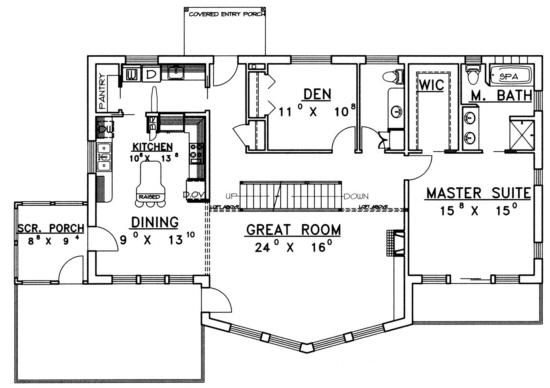

Main Floor

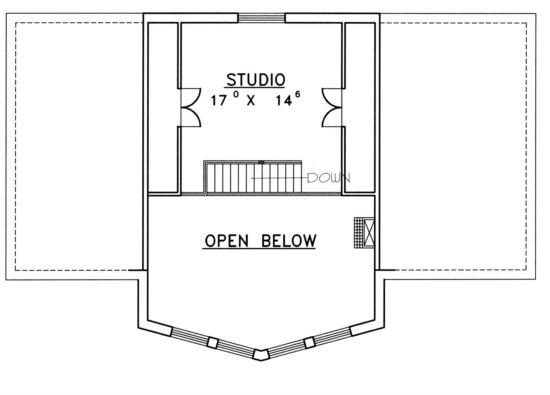

Loft/Studio Floor
