House Plan 039-00162
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Laundry On Main Floor
Master On Main Floor
Media Room
Mud Room
Nook
Split Bedrooms
Garage Type
Side Entry
|
|
| Square Footage: | 4,790 sq. ft. |
| First Floor: | 2,426 sq. ft. |
| Garage: | 945 sq. ft. |
| Basement: | 2,364 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 5 |
| Bathrooms: | 4 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 75ft.-6in. |
| Depth: | 69ft.-6in. |
| Height: | 20ft.-5in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 14-8
x 9
|
| Bedroom 3: |
12
x 14-8
x 9
|
| Bedroom 4: |
13-10
x 12-5
x 9
|
| Bedroom 5: |
13-10
x 12-5
x 9
|
| Dining Room: |
13
x 10
x 9
|
| Family Room: |
25-6
x 21
x 9
|
| Great Room: |
20
x 23-8
x 9
|
| Kitchen: |
22-4
x 13-6
x 9
|
| Master Suite: |
16
x 17
x 9
|
| Mechanical Room: |
11-2
x 12-6
x 9
|
| Media Room: |
29-2
x 9-6
|
| Nook: |
13-7
x 13
x 9
|
| Storage Room: |
10
x 12-8
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

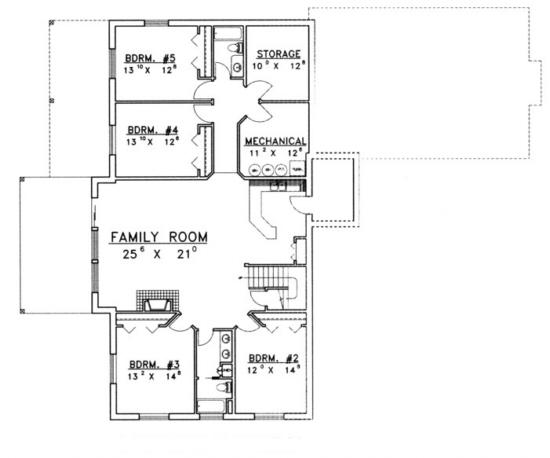

Basement Floor
Images Copyrighted by Designer

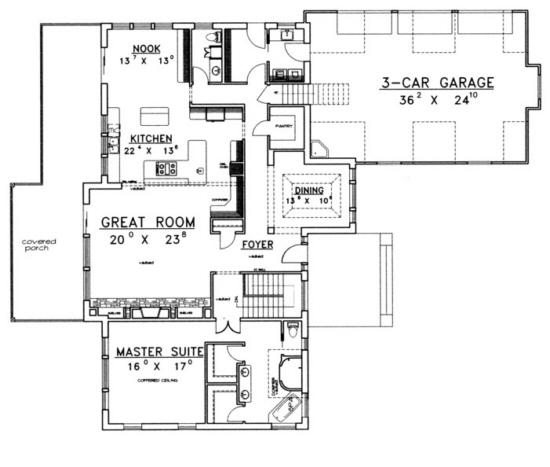

Main Floor

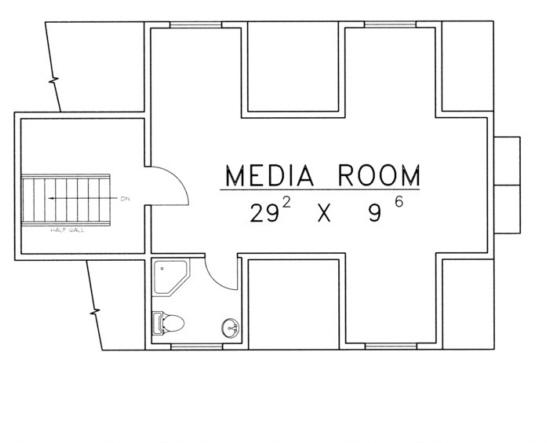

Attic Floor
