House Plan 039-00018
|
View the Floorplan

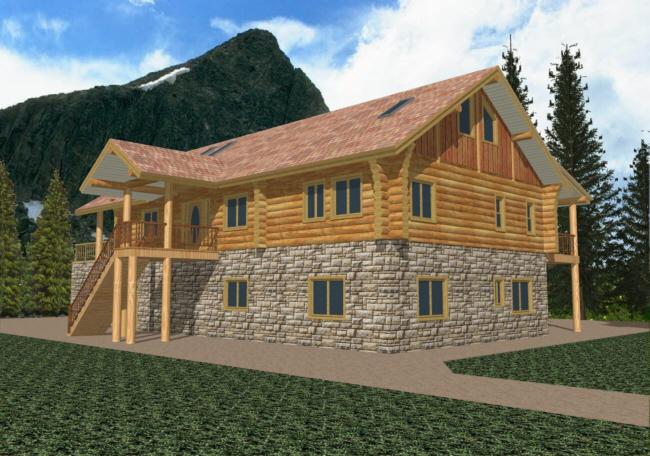

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Home Office
Laundry On Main Floor
Master Up
Mud Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
Stacked
|
|
| Square Footage: | 3,755 sq. ft. |
| First Floor: | 1,944 sq. ft. |
| Garage: | 2,579 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 69ft.-10in. |
| Depth: | 42ft. |
| Height: | 31ft.-9in. |
| Foundation: | Slab |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
14-8
x 14-2
x 9
|
| Deck 1: |
18
x 10
|
| Deck 2: |
14
x 10
|
| Deck 3: |
17-6
x 33
|
| Deck 4: |
14
x 10
|
| Deck 5: |
18
x 10
|
| Dining Room: |
16
x 13-6
x 9
|
| Entry Porch: |
13
x 7-6
|
| Garage: |
22-6
x 30-8
|
| Great Room: |
29
x 25
x 9
|
| Home Office : |
10
x 11-6
x 9
|
| Kitchen: |
16
x 12-8
x 9
|
| Laundry Room: |
9-2
x 8-1
x 9
|
| Master Bath: |
17
x 8-4
x 9
|
| Master Dressing Room: |
11-8
x 8
x 9
|
| Master Suite: |
17
x 17
x 9
|
| Mechanical Room: |
9-2
x 8-10
|
| Mud Room: |
14-8
x 9-6
x 9
|
| Storage Room: |
8
x 8-10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

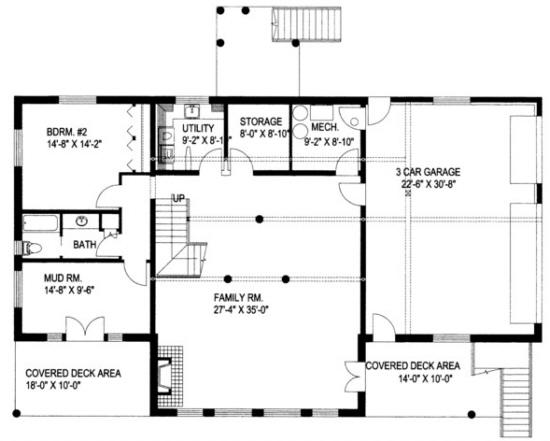

First Floor
Images Copyrighted by Designer

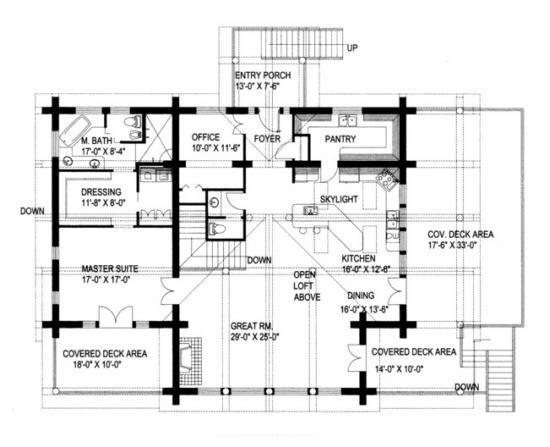

Second Floor
