House Plan 039-00005
|
View the Floorplan

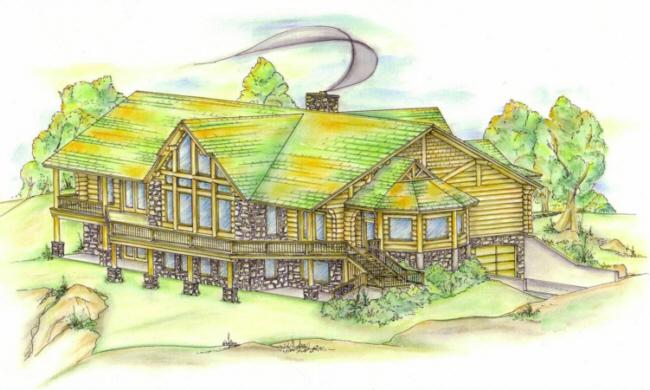

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Guest Room
Laundry On Main Floor
Master On Main Floor
Media Room
Study
Sunroom
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 3,649 sq. ft. |
| First Floor: | 2,355 sq. ft. |
| Garage: | 843 sq. ft. |
| Basement: | 1,294 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 4 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 71ft.-10in. |
| Depth: | 56ft.-6in. |
| Height: | 23ft.-5in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
13-2
x 11-6
|
| Bedroom 3: |
10
x 14-5
x 9
|
| Dining Room: |
11-9
x 13-6
|
| Foyer: |
8-8
x 11-2
|
| Front Porch: |
14-8
x 8-6
|
| Garage: |
22
x 21
|
| Great Room: |
19-6
x 27-10
|
| Guest Suite: |
16-11
x 14-11
x 9
|
| Kitchen: |
15-6
x 15
|
| Master Bath: |
19
x 14-5
|
| Master Suite: |
19
x 14-6
|
| Media/Recreation Room: |
19
x 24-4
x 9
|
| Storage Room 1: |
28-10
x 11-2
x 9
|
| Storage Room 2: |
12-1
x 15-10
x 9
|
| Sunroom: |
12
x 16
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00

|

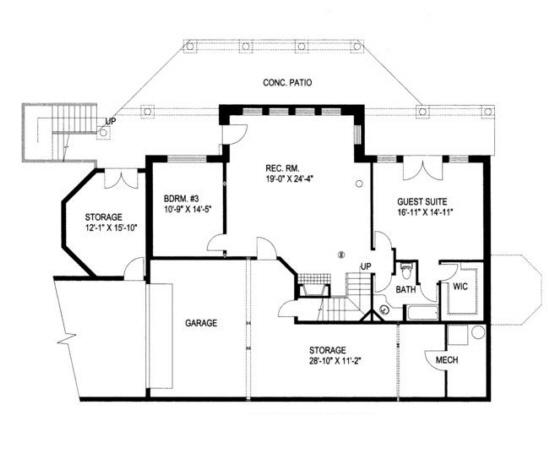

Basement Floor
Images Copyrighted by Designer

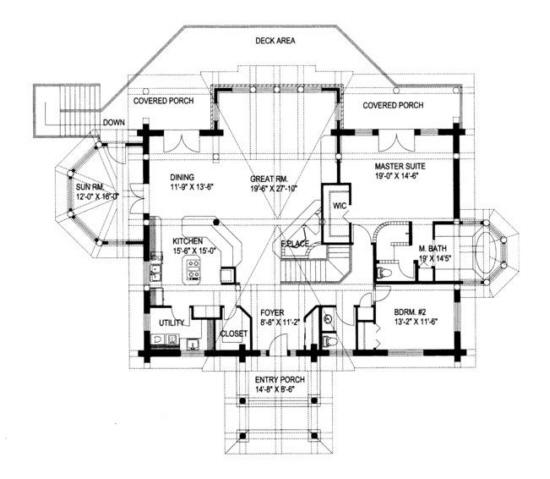

Main Floor
