House Plan 039-00004
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Loft
Master On Main Floor
Split Bedrooms
Garage Type
Drive Under
Front Entry
Side Entry
Porch Type
Front
Rear
Wrap Around
|
|
| Square Footage: | 3,503 sq. ft. |
| First Floor: | 2,030 sq. ft. |
| Second Floor: | 1,473 sq. ft. |
| Garage: | 1,179 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 4 car |
| Width: | 72ft.-6in. |
| Depth: | 71ft.-3in. |
| Height: | 30ft. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
17-6
x 18-11
x 7-11
|
| Bedroom 3: |
17-6
x 18-11
x 7-11
|
| Dining Room: |
17
x 14-6
x 9
|
| Front Porch: |
14
x 7-6
|
| Garage 1: |
23
x 23
|
| Garage 2: |
22
x 21
|
| Great Room: |
23
x 27
x 9
|
| Kitchen: |
17
x 12-6
x 9
|
| Laundry Room: |
11-2
x 6
x 9
|
| Loft : |
23
x 19-8
x 7-11
|
| Master Bath: |
10-2
x 11
x 9
|
| Master Closet: |
11-2
x 6
x 9
|
| Master Suite: |
17
x 15
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

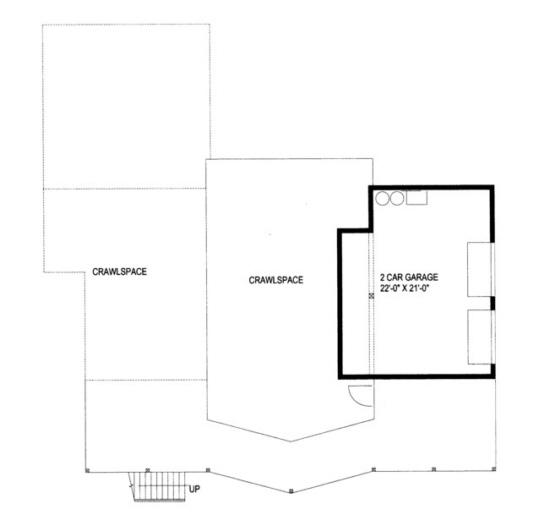

Garage/Basement Floor
Images Copyrighted by Designer

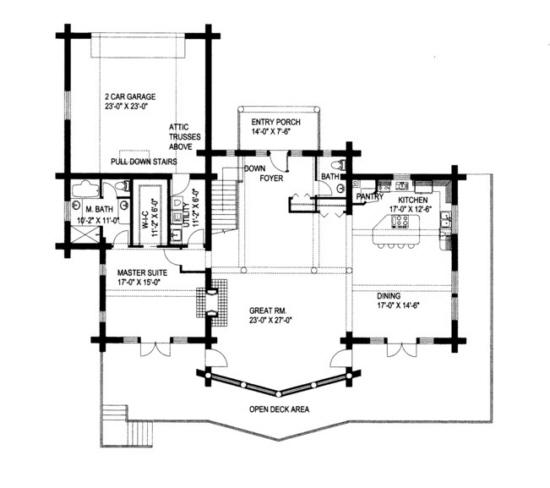

First Floor

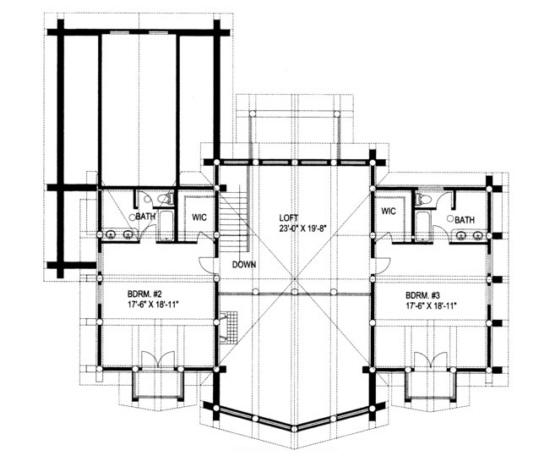

Second Floor
