Traditional House Plan #036-00144 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,012

Beds 4

Bath 3

1/2 Baths 1

Car 2

Stories 1.5

Width 57' 8"

Depth 48' 11"

See What's Included

Select Package

PDF (Single Build)

$1,595.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$3,095.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,645.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,695.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,195.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,695.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Crawlspace Foundation $0.00

Basement Foundation $0.00

Slab Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $80.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

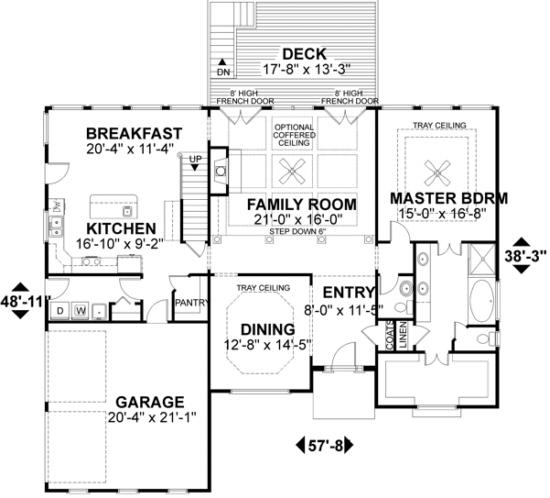

First Floor

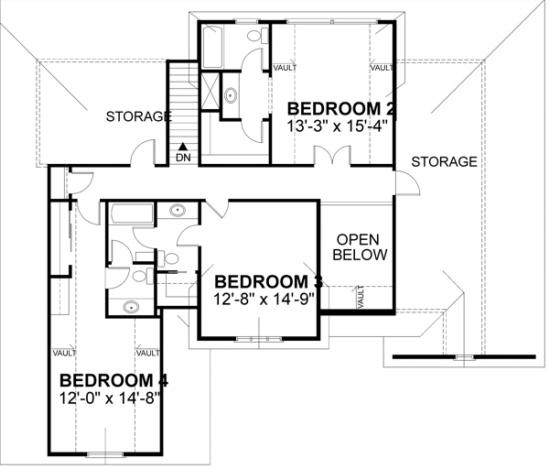

Second Floor

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This spectacular “Cape Cod” style floor plan is highlighted by its use of masterful window design and would be ideal for a lakefront or golf course lot. The family room is the center of the home and offers coffered ceilings, sunken floors, a fireplace with built-ins and beautiful double French doors leading to the rear deck. There is a formal dining room with trey ceiling as well as an informal breakfast area highlighted by a wall of windows. The kitchen offers a center island with breakfast bar, a separate pantry and plenty of additional counter and cabinet space. A large laundry room is accessed from either the side yard or through the garage for convenience. The master suite is impressive with its double step trey ceiling and wall of windows in the bedroom along with an oversized walk-in closet situated at the back of the master bath. The bath includes dual vanities, a garden tub, separate shower and compartmentalized toilet. Upstairs, you have three large bedrooms, two of which have walk-in closets and the other has a large closet area. One bedroom has a private bath while the other two share a jack and jill bathroom. There are two additional large storage spaces upstairs as well making this home both functional and livable.
