Split Foyer House Plan #036-00003 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 999

Beds 2

Bath 2

1/2 Baths 0

Car 2

Stories 2

Width 40'

Depth 23'

See What's Included

Select Package

PDF (Single Build)

$1,045.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$2,545.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,045.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,195.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,495.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,995.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $350.00

Basement Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $55.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

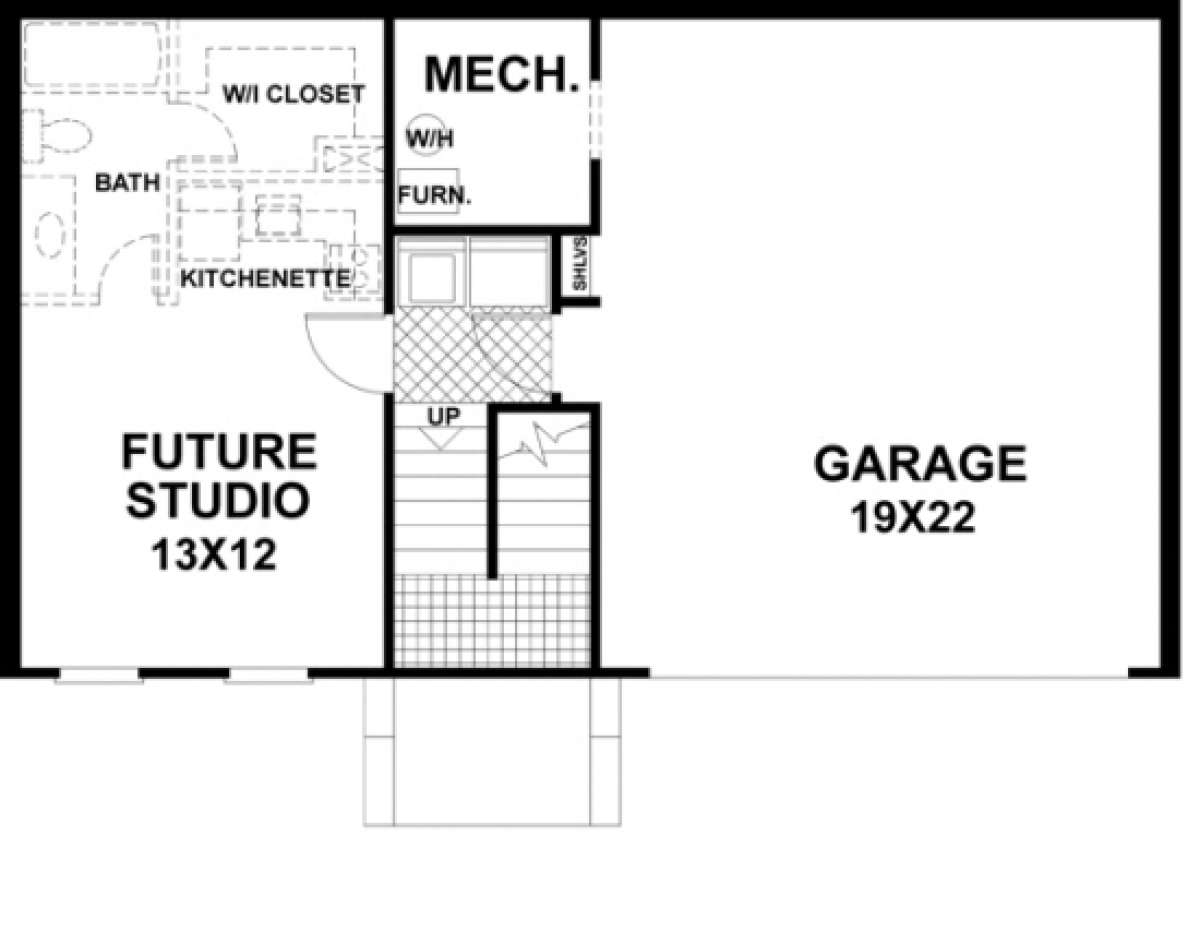

Garage Floor

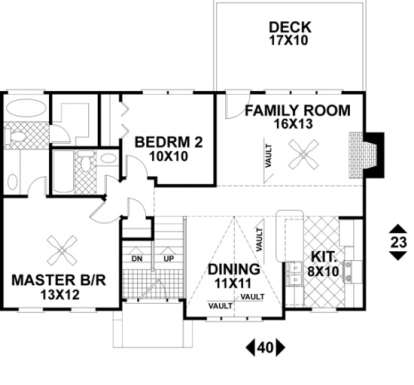

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This attractive split foyer house plan features a blend of luxury and economy with its use of extravagant features and economical square footage. The exterior façade is highlighted with a walk-up front covered entrance, a myriad of window views and horizontal siding. A spacious interior is composed of 999 square feet of living space that includes two bedrooms and two baths on two floors. This house plan is specifically designed for a narrow and/or small lot with its 40’ width and 23’ depth dimensions. The dramatic entry features a glass door with sidelights and an accompanying arched transom which gives a glimpse into the home’s interior. The interior foyer leads to the double staircase granting access to the main level and terrace level of the home. There is a large vaulted family room with a handsome fireplace, a triple wall of windows and access onto the rear spacious deck for outstanding entertaining purposes. A similarly vaulted dining room offers great space for family and special occasion dining while the U-shaped kitchen is highlighted with a peninsula bar for casual dining and loads of counter and cabinet space. At the opposite end of the hallway there is the master suite and second bedroom along with a hall bath with large vanity space, a toilet area and a tub/shower combination. The second bedroom is spacious with double window views and generous closet space while the master suite features good floor space, an attached walk-in closet and an en suite bath. The master bath is highlighted with an extended vanity, a toilet area and a large soaking garden tub.
The terrace level of the home houses the two car drive under garage, the mechanical room and open shelving for tidy storage options. Additionally, there is space for a future studio or teen/mother-in-law suite that can be configured to include a kitchenette, a full bath and a walk-in closet. This split level home is perfect for a small family and features an efficient and versatile floor plan with expansion space and an attractive exterior façade.
