House Plan 035-00325
|
View the Floorplan

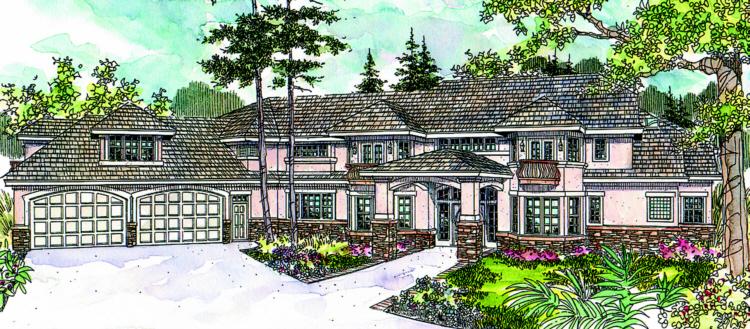

Front Elevation elev 2 elev 1 If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

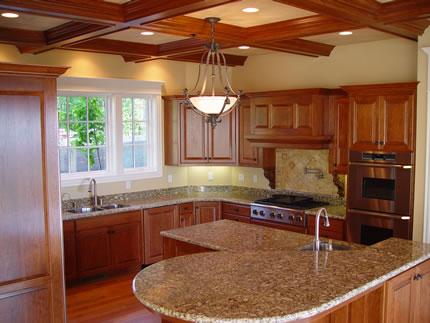

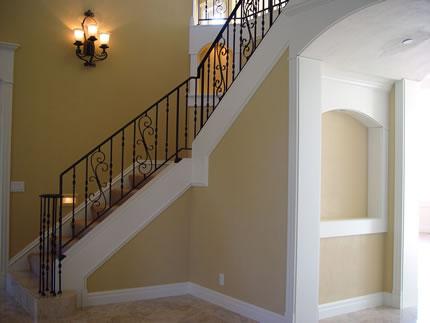

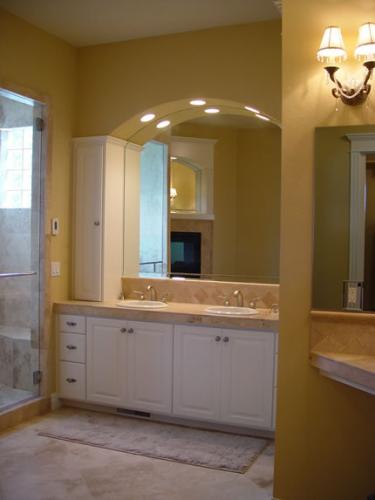

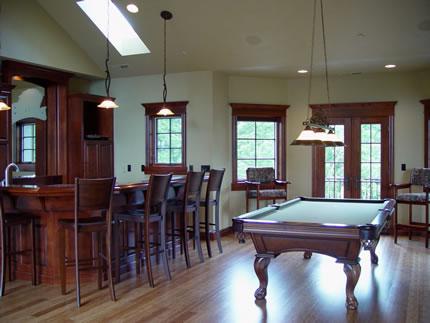

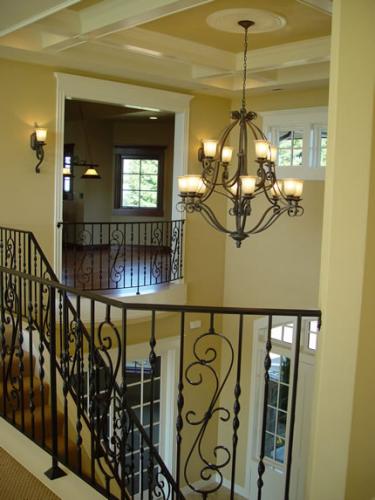

Photos
Click to view photos full size.
Arches & stucco create a sunny look; wrought iron & stone add European flavor
Windows fill most rear wall in the two-story, barrel-vaulted living room at the core
Elegant and spacious owners' suite fills most of the right wing, has private patio
Features
Additional Rooms
Bonus Room
Laundry On Main Floor
Loft
Master On Main Floor
Mud Room
Nook
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
Rear
Stacked
|
|
| Square Footage: | 5,389 sq. ft. |
| First Floor: | 3,112 sq. ft. |
| Second Floor: | 2,277 sq. ft. |
| Bonus Room: | 836 sq. ft. |
| Garage: | 1,514 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Half Baths: | 2 |
| Garages: | 4 car |
| Width: | 141ft.-10in. |
| Depth: | 76ft.-9in. |
| Height: | 32ft.-8in. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 9/12 |
Ceiling Height |
| First Floor: | 10 feet |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
15-8
x 14-8
|
| Bedroom: |
12
x 12-4
|
| Bedroom: |
13
x 13-8
|
| Bonus Room: |
16
x 43-6
|
| Den: |
13
x 17-8
x 10
|
| Dining Room: |
13
x 16
x 10
|
| Garage: |
43-6
x 25
|
| Living Room: |
27
x 20-6
|
| Owners Suite: |
16-4
x 21
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $1,100.00
8 Sets: $1,275.00
Reproducible: $1,285.00
PDF: $1,285.00
CAD Files: $2,000.00
Additional Options
Additional Construction Sets: $80.00
Right Reading Reverse Set: $450.00
Mirrored Reverse: $25.00
|

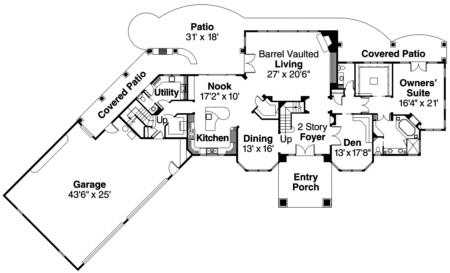

Floorplan 1
Images Copyrighted by Designer

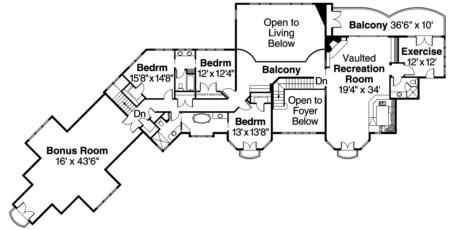

Floorplan 2
