House Plan 035-00249
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
•Tile, stucco, columns and overall ambiance blend in this Italian-style estate plan
•The kitchen rims a gathering room with free-standing wood stove & dining area
•Another fireplace warms the playroom, next to the master and guest suites
Features
Additional Rooms
Guest Room
Home Office
Keeping Room
Library
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,376 sq. ft. |
| First Floor: | 2,847 sq. ft. |
| Second Floor: | 1,529 sq. ft. |
| Garage: | 1,078 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 4 |
| Garages: | 3 car |
| Width: | 108ft. |
| Depth: | 53ft. |
| Height: | 28ft.-2in. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 5/12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Balcony: |
20
x 11
|
| Bedroom: |
11-2
x 13-4
|
| Bedroom: |
15
x 11-4
|
| Bedroom: |
11-6
x 11-2
|
| Dining Room: |
14-9
x 16-10
x 9-4
|
| Garage: |
22-6
x 25-6
|
| Gathering Room: |
14-5
x 19-10
x 9-4
|
| Guest Suite: |
11-4
x 12-2
x 9-4
|
| Library/ Office: |
20-10
x 12-8
|
| Master Suite: |
17
x 15-6
x 9-4
|
| Play Room: |
20-9
x 14-6
x 9-4
|
| Shop/ Hobby: |
26
x 13-2
|
| Theatre/ Exercise: |
20-8
x 16-8
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $1,100.00
8 Sets: $1,275.00
Reproducible: $1,585.00
CAD Files: $2,000.00
Additional Options
Additional Construction Sets: $80.00
Right Reading Reverse Set: $450.00
Mirrored Reverse: $25.00
|

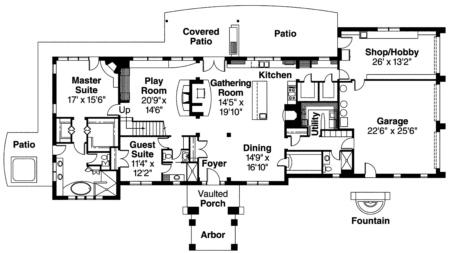

Floorplan 1
Images Copyrighted by Designer

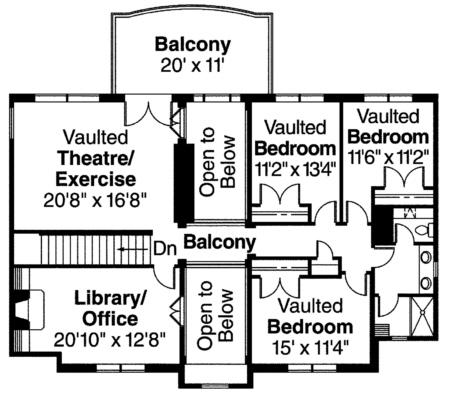

Floorplan 2
