House Plan 035-00247
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

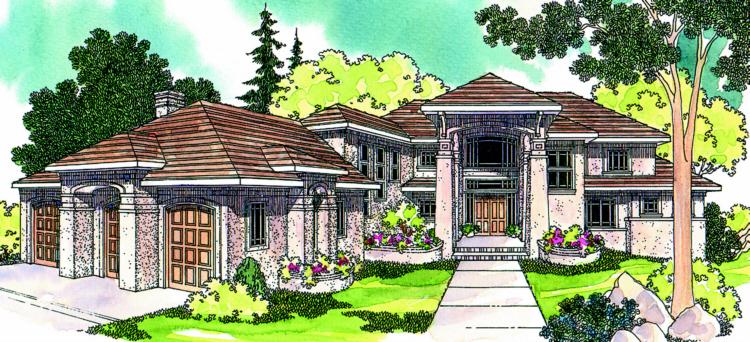

Stately two-story Mediterranean mansion with daylight basement
Interior balcony overlooks bright two-story foyer and living room
Spacious family room open to side kitchen with bayed nook
Features
Additional Rooms
Formal Living Room
Laundry On Main Floor
Master On Main Floor
Nook
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,284 sq. ft. |
| First Floor: | 3,030 sq. ft. |
| Second Floor: | 1,254 sq. ft. |
| Garage: | 1,048 sq. ft. |
| Basement: | 1,460 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 4 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 116ft. |
| Depth: | 81ft. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
14-2
x 14-4
|
| Bedroom: |
15-6
x 11-8
|
| Bedroom: |
14
x 20-4
|
| Deck: |
12
x 19
|
| Deck 2: |
14-4
x 8
|
| Den: |
10-8
x 11-4
x 10
|
| Dining Room: |
14-6
x 18
x 10
|
| Family Room: |
22-10
x 17
x 10
|
| Garage: |
38-4
x 27-8
|
| Living Room: |
17
x 19
x 10
|
| Lower Deck: |
47
x 17
|
| Master Suite: |
14-4
x 20-4
x 10
|
| Nook: |
12-8
x 9
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $1,100.00
8 Sets: $1,275.00
Reproducible: $1,585.00
CAD Files: $2,000.00
Additional Options
Additional Construction Sets: $80.00
Right Reading Reverse Set: $450.00
Mirrored Reverse: $25.00
|

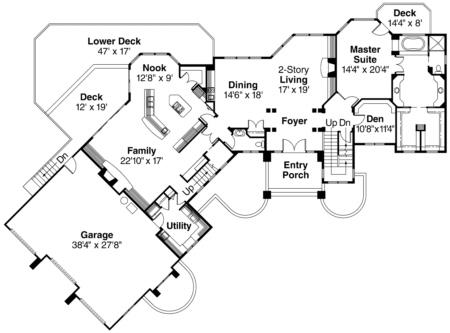

First Floor
Images Copyrighted by Designer

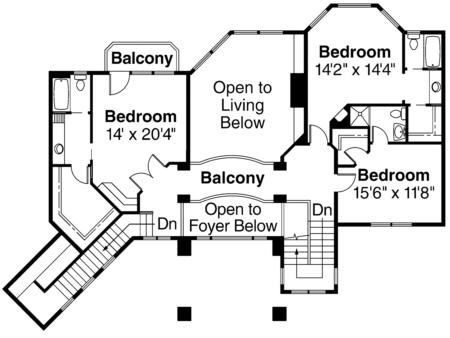

Second Floor
