House Plan 035-00135
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

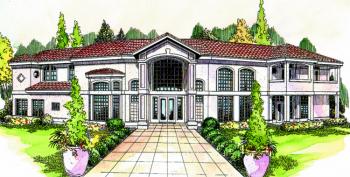

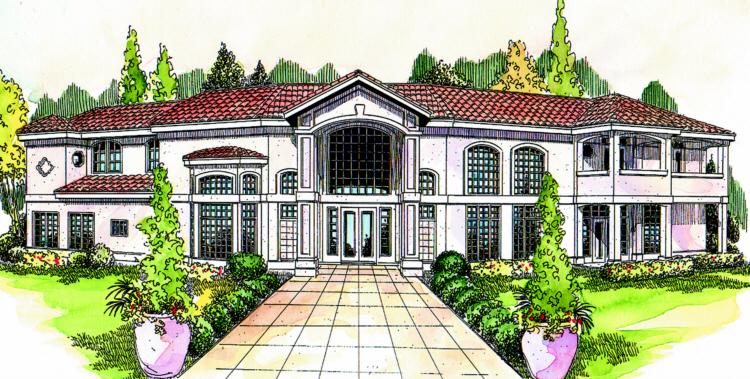

Gently arched and grid windows evoke the Southwest or Mediterranean regions
Lofty portico leads into naturally bright two-story foyer, entry and living room
Ground floor colonnade and upper lanai join rooms, rim courtyard on two sides
Features
Additional Rooms
Formal Living Room
Laundry On Main Floor
Master Up
Media Room
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 3,509 sq. ft. |
| First Floor: | 2,106 sq. ft. |
| Second Floor: | 1,403 sq. ft. |
| Garage: | 682 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 3 |
| Garages: | 3 car |
| Width: | 95ft.-5in. |
| Depth: | 75ft.-11in. |
| Foundation: | Slab |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
13-2
x 14
|
| Bedroom: |
13
x 10-4
|
| Dining Room: |
15-10
x 16-2
x 10
|
| Entry: |
10
x 11-8
x 10
|
| Family Room: |
10-6
x 18-8
x 10
|
| Garage: |
21-4
x 29-8
|
| Living Room: |
18
x 16-9
x 10
|
| Master Suite: |
18-10
x 22-10
|
| Media Room: |
18-8
x 14
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $975.00
8 Sets: $1,150.00
Reproducible: $1,480.00
CAD Files: $1,800.00
Additional Options
Additional Construction Sets: $70.00
Right Reading Reverse Set: $350.00
Mirrored Reverse: $25.00

|

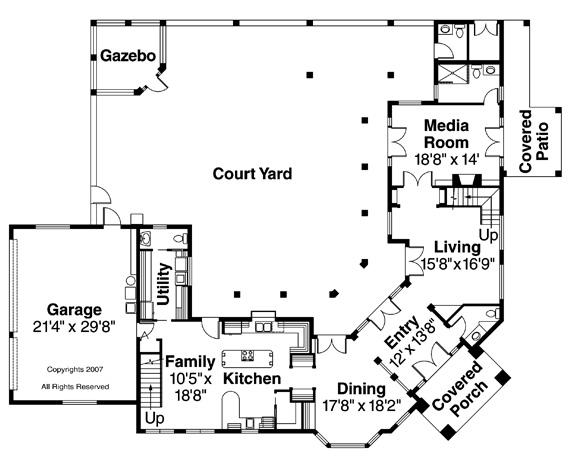

First Floor
Images Copyrighted by Designer

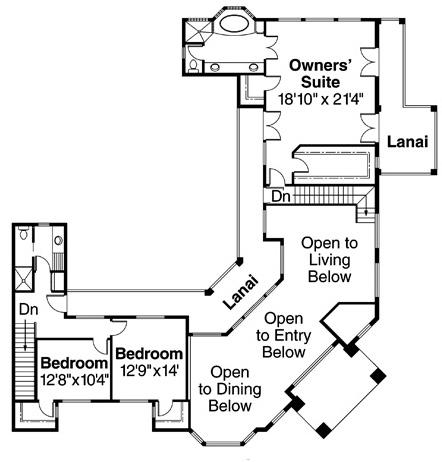

Second Floor
