House Plan 035-00130
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Arched fanlight window accents small Mediterranean-style home
Great room, totally open to the kitchen, offers sliding door access to screened porch
Luxurious master suite amenities include: huge walk-in closet, oversized shower
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Study
Garage Type
Front Entry
Porch Type
Rear
|
|
| Square Footage: | 1,646 sq. ft. |
| First Floor: | 1,646 sq. ft. |
| Garage: | 517 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Garages: | 2 car |
| Width: | 57ft. |
| Depth: | 59ft. |
| Foundation: | Slab Crawl Space |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
13-8
x 11-4
x 8
|
| Bedroom/Study: |
10-2
x 10-8
x 8
|
| Dining Room: |
11
x 10-6
x 8
|
| Garage: |
22-8
x 22-8
|
| Great Room: |
18-4
x 18-2
x 8
|
| Master Suite: |
17-8
x 12-10
x 8
|
| Screened Porch: |
20
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $575.00
8 Sets: $675.00
Reproducible: $800.00
CAD Files: $1,015.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $150.00
Mirrored Reverse: $25.00

|

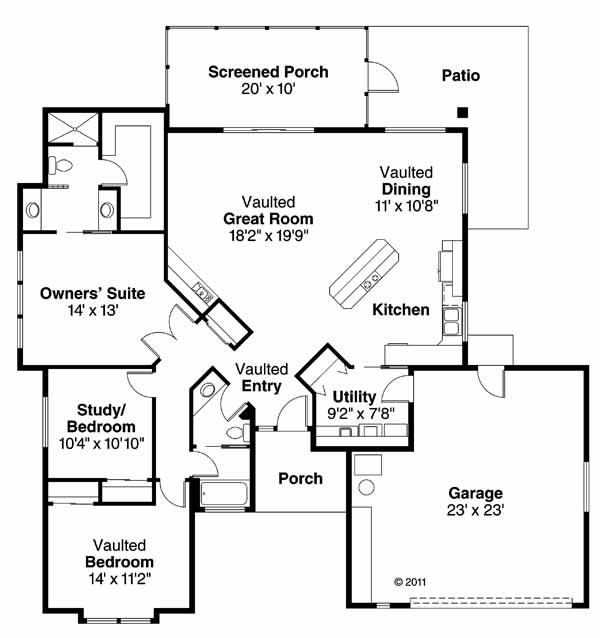

Floorplan
