House Plan 035-00084
|
View the Floorplan

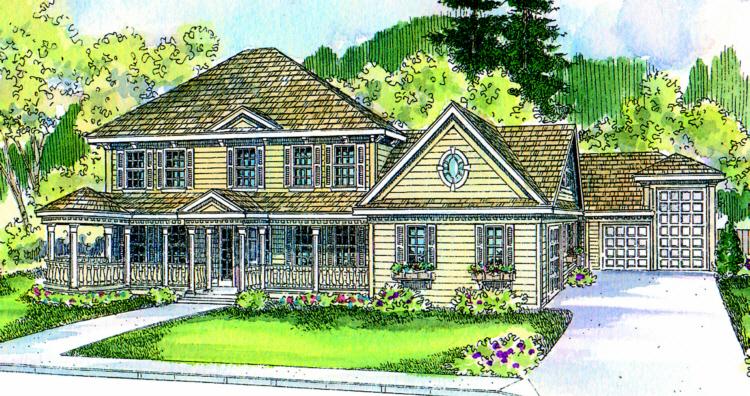

Front Elevation elev 1 If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Photos
Click to view photos full size.
Estate boasts gazebo-style enclosure at left end of classically columned porch

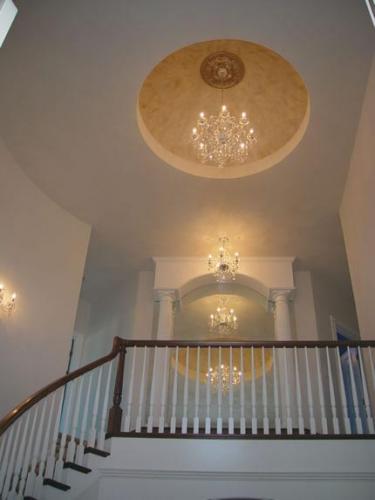

Graceful staircase curves up left side of elegant marble-tiled, two-story foyer

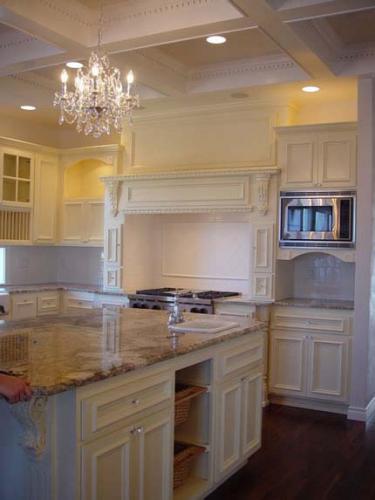

Great room with fireplace & entertainment center, links to library, kitchen and nook
Features
Additional Rooms
Bonus Room
Laundry On Main Floor
Library
Master On Main Floor
Split Bedrooms
Garage Type
Front Entry
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,886 sq. ft. |
| First Floor: | 2,623 sq. ft. |
| Second Floor: | 1,263 sq. ft. |
| Bonus Room: | 1,037 sq. ft. |
| Garage: | 1,427 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 2 |
| Half Baths: | 2 |
| Garages: | 4 car |
| Width: | 91ft.-5in. |
| Depth: | 84ft. |
| Height: | 30ft. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 7/12 |
Ceiling Height |
| First Floor: | 10 feet |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
12
x 20
|
| Bedroom: |
13-8
x 15-6
|
| Bedroom: |
12-2
x 13-4
|
| Bonus Room: |
13
x 32
|
| Dining Room: |
12-2
x 13-4
x 10
|
| Garage 1: |
22-4
x 21-8
|
| Garage 2: |
23-8
x 43-4
|
| Great Room: |
24-4
x 21-8
x 10
|
| Library: |
12
x 14
x 10
|
| Nook: |
8
x 7
x 10
|
| Patio: |
20-2
x 17
|
| Storage: |
13
x 36-6
|
| Utility/ Hobby: |
16-6
x 12-2
x 10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $975.00
8 Sets: $1,150.00
Reproducible: $1,480.00
PDF: $1,480.00
CAD Files: $1,800.00
Additional Options
Additional Construction Sets: $70.00
Right Reading Reverse Set: $350.00
Mirrored Reverse: $25.00
|

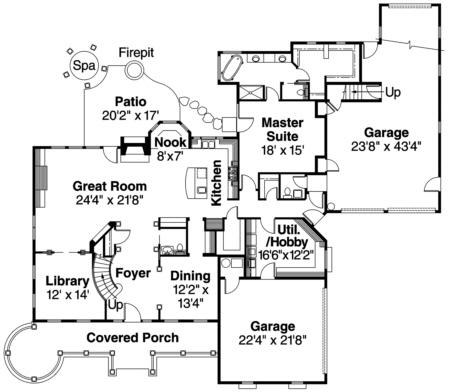

Floorplan 1
Images Copyrighted by Designer

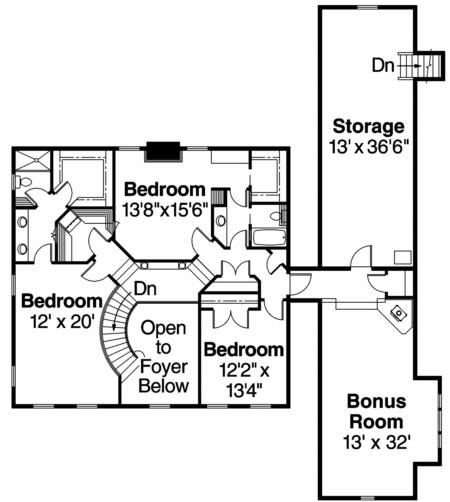

Floorplan 2
