House Plan 035-00030
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Second floor bridge divides vaulted entry and family room
Large bonus room nestles under gable of three-car garage
Posh master suite boasts huge walk-in closet, spa tub, big corner
Features
Additional Rooms
Bonus Room
Formal Living Room
Laundry On Main Floor
Master On Main Floor
Nook
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,040 sq. ft. |
| First Floor: | 2,298 sq. ft. |
| Second Floor: | 742 sq. ft. |
| Bonus Room: | 344 sq. ft. |
| Garage: | 864 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 76ft. |
| Depth: | 56ft. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
11-6
x 12-6
|
| Bedroom: |
13
x 16
|
| Bonus Room: |
11-10
x 21-8
|
| Dining Room: |
13-6
x 14-6
x 9
|
| Family Room: |
17-2
x 22-6
x 9
|
| Garage: |
35-2
x 24-8
|
| Living Room: |
15
x 15-4
x 9
|
| Master Suite: |
16
x 21-2
x 9
|
| Nook: |
14-6
x 11-2
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $975.00
8 Sets: $1,150.00
Reproducible: $1,480.00
CAD Files: $1,800.00
Additional Options
Additional Construction Sets: $70.00
Right Reading Reverse Set: $350.00
Mirrored Reverse: $25.00
|

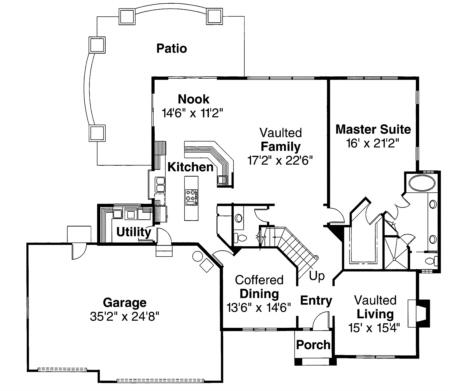

First Floor
Images Copyrighted by Designer

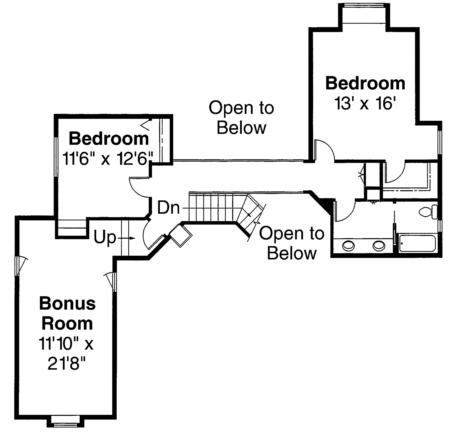

Second Floor
