House Plan 034-00142
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
For each unit (1126 sq.ft., 101.34 sq.m.):
Main level: Closed foyer with coat closet, kitchen with lunch counter and breakfast area, family room, half-bath.
2nd Level: 2 or 3 bedrooms one of which has a sitting area, full bathroom
Large walk-in closet in master bedroom of one of the apartments, abundant fenestration, covered main entrances.
Features
Additional Rooms
Master Up
|
|
| Square Footage: | 2,252 sq. ft. |
| First Floor: | 1,126 sq. ft. |
| Second Floor: | 1,126 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 2-3 |
| Bathrooms: | 1 |
| Half Baths: | 1 |
| Width: | 45ft.-8in. |
| Depth: | 26ft.-6in. |
| Height: | 25ft.-5in. |
| Foundation: | Slab |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom Left Unit: |
8-4
x 10-4
x 8
|
| Bedroom Left Unit: |
10-8
x 9
x 8
|
| Bedroom Right Unit: |
10-8
x 9
x 8
|
| Breakfast Room(s): |
9
x 11-4
x 8
|
| Family Room(s): |
13-10
x 13-10
x 8
|
| Kitchen(s): |
8-7
x 11
x 8
|
| Master Suite Left Unit: |
10-9
x 12-2
x 8
|
| Master Suite Right Unit: |
10-9
x 17-6
x 8
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $780.00
8 Sets: $810.00
Reproducible: $995.00
PDF: $995.00
CAD Files: $1,655.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $150.00
Material List: $125.00
Slab Foundation: $295.00
Crawlspace Foundation: $295.00
|

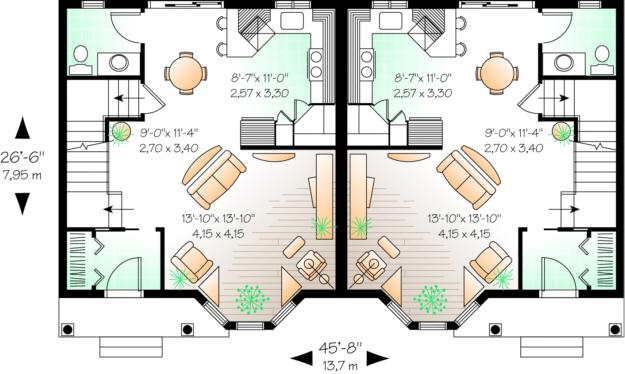

First Floor
Images Copyrighted by Designer

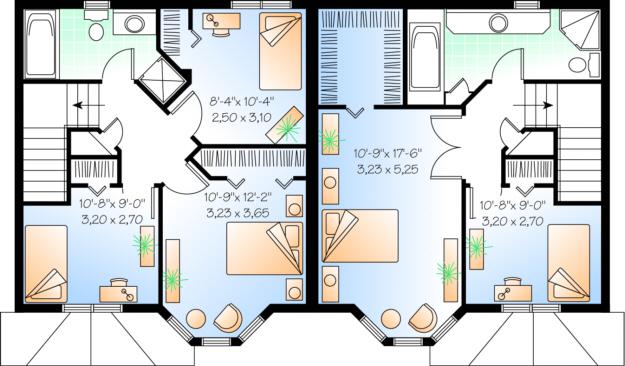

Second Floor
