House Plan 034-00109
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
1st level: Foyer entry, three-car garage with integrated workshop/storage area.
2nd level: Family room/dining room with fireplace, kitchen, laundry facilities, two bedrooms, two shower rooms. Ample storage in each of the bedrooms.
Well situated fireplace on second level. Other built-in storage which also serves as a railing at the top of the stairs.
|
|
| Square Footage: | 1,096 sq. ft. |
| First Floor: | 128 sq. ft. |
| Second Floor: | 968 sq. ft. |
| Garage: | 773 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 2 |
| Bathrooms: | 2 |
| Garages: | 3 car |
| Width: | 36ft. |
| Depth: | 30ft. |
| Height: | 27ft. |
| Foundation: | Slab |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom: |
11-2
x 10
x 8
|
| Bedroom: |
11-2
x 10
x 8
|
| Dining/Family Room: |
22-2
x 12-6
|
| Kitchen: |
8-4
x 10-2
x 8
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $555.00
8 Sets: $585.00
Reproducible: $770.00
PDF: $770.00
CAD Files: $1,430.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $150.00
Material List: $85.00
|

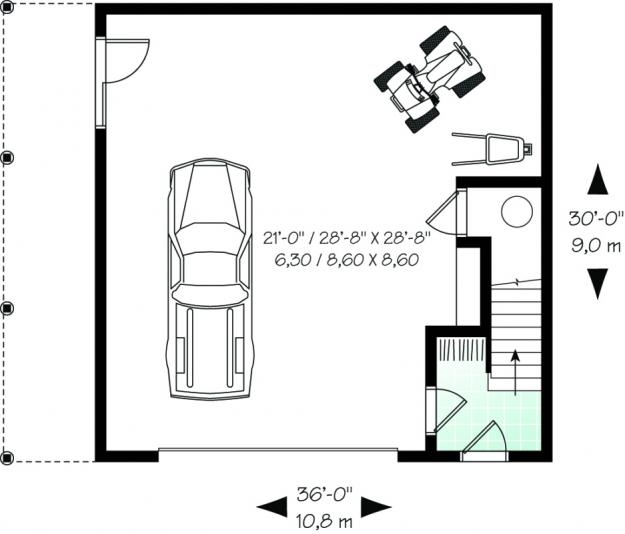

Garage Floor
Images Copyrighted by Designer

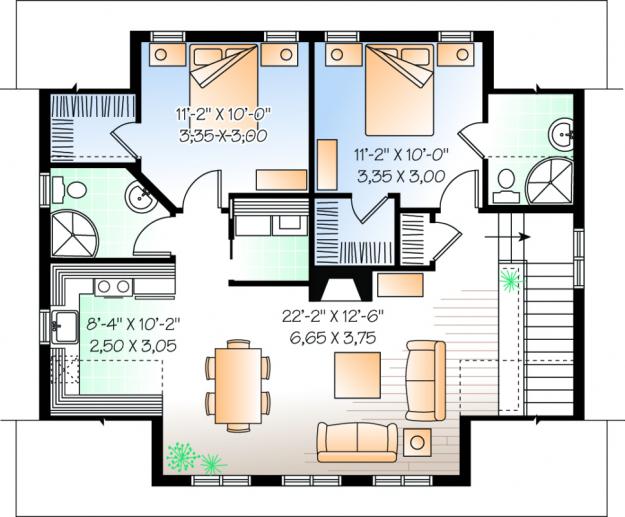

Main Floor
