House Plan 028-00029

View the Floorplan



If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

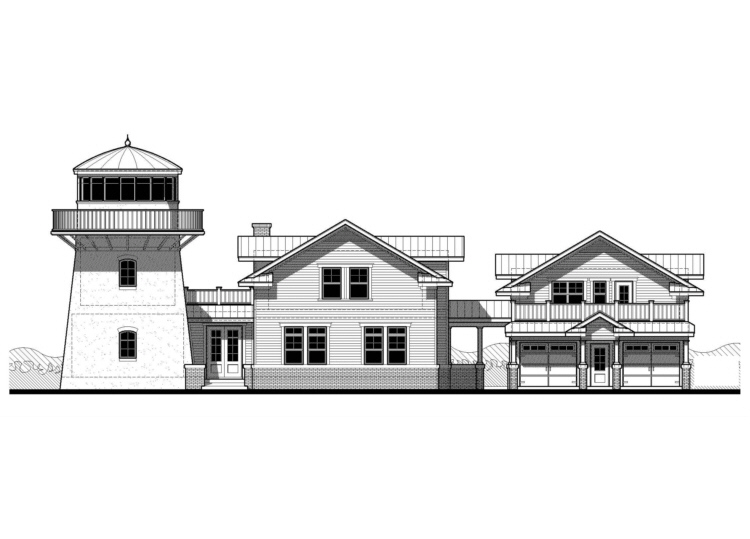

This home is designed to replicate the historic cluster of buildings used by those who kept watch at our coast’s lighthouses. The Main house features all living spaces downstairs, and 3 bedrooms upstairs. A covered walk connects the main house to the garage apartment. The foyer connects the main house to the 3-story lighthouse. The glass upper-deck of the lighthouse delivers a scenic view of your unique location, and is a great place to relax and get away from everything. This is the perfect large vacation home.

Features

live chat
Additional Rooms
Formal Living Room
Laundry On Main Floor
Master Up
Media Room
Mother-In-Law Suite
Sitting Room

Garage Type
Front Entry

Porch Type
Rear


Square Footage:1,586 sq. ft.
First Floor:1,471 sq. ft.
Second Floor:1,208 sq. ft.
Third Floor:198 sq. ft.
Bonus Room:578 sq. ft.
Garage:641 sq. ft.
Floors:3
Bedrooms:4
Bathrooms:3
Half Baths:1
Garages:2 car
Width:100ft.
Depth:45ft.
Height:40ft.
Foundation:Slab
Main Roof Pitch:8:12
Additional Specs:Show Room Dimensions

More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page

Pricing

8 Sets: $1,300.00
Reproducible: $1,300.00
CAD Files: $1,700.00

Additional Options

Additional Construction Sets: $50.00

***This plan is not eligible for discounts***

Add To Cart

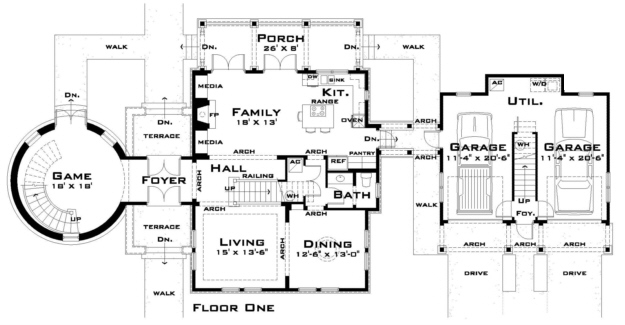

First Floor

Images Copyrighted by Designer

floor plan

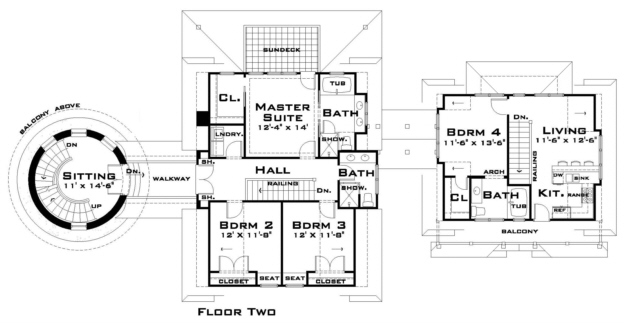

Second Floor

floor plan

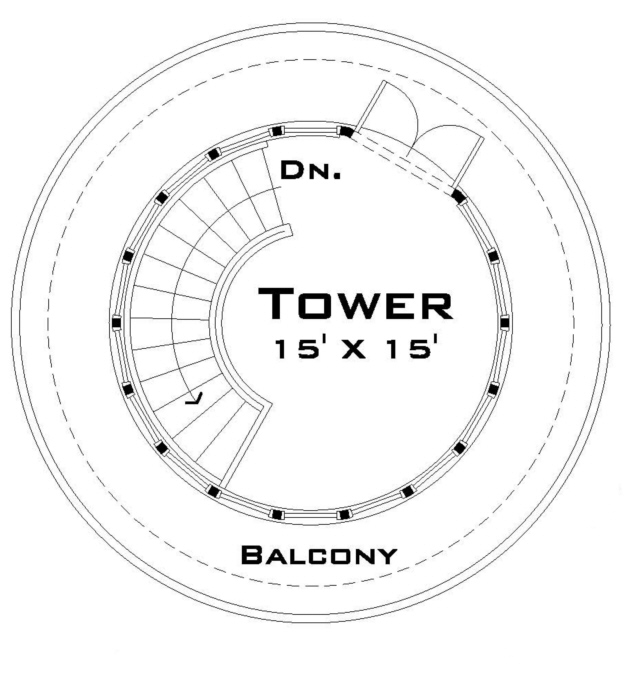

Tower

floor plan
