House Plan 009-00132
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Bonus Room
Laundry On Main Floor
Loft
Master On Main Floor
Sunroom
Garage Type
Front Entry
Porch Type
Front
|
|
| Square Footage: | 3,047 sq. ft. |
| First Floor: | 2,218 sq. ft. |
| Second Floor: | 829 sq. ft. |
| Garage: | 451 sq. ft. |
| Basement: | 2,218 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Garages: | 2 car |
| Width: | 47ft. |
| Depth: | 62ft. |
| Height: | 28ft.-5in. |
| Foundation: | Slab
Unfinished Basement |
| Main Roof Pitch: | 7:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12-1
x 10
x 9
|
| Bedroom 3: |
12-1
x 11-6
x 9
|
| Bonus Room: |
15-5
x 22-5
x 8
|
| Breakfast: |
10
x 11-3
x 9
|
| Dining Room: |
11-4
x 11
x 9
|
| Family Room: |
16
x 19-4
|
| Foyer: |
8-5
x 11-5
x 12-5
|
| Garage: |
19-5
x 22-5
|
| Kitchen: |
12-6
x 13-6
x 9
|
| Laundry: |
6-2
x 8
x 9
|
| Loft: |
28-2
x 17-2
x 8
|
| Master Bath: |
18
x 14
x 11
|
| Master Bedroom: |
18
x 14
x 11
|
| Master Closet: |
11-7
x 5-4
x 9
|
| Sunroom: |
11
x 10
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $800.00
Reproducible: $1,000.00
CAD Files: $2,000.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $300.00
|

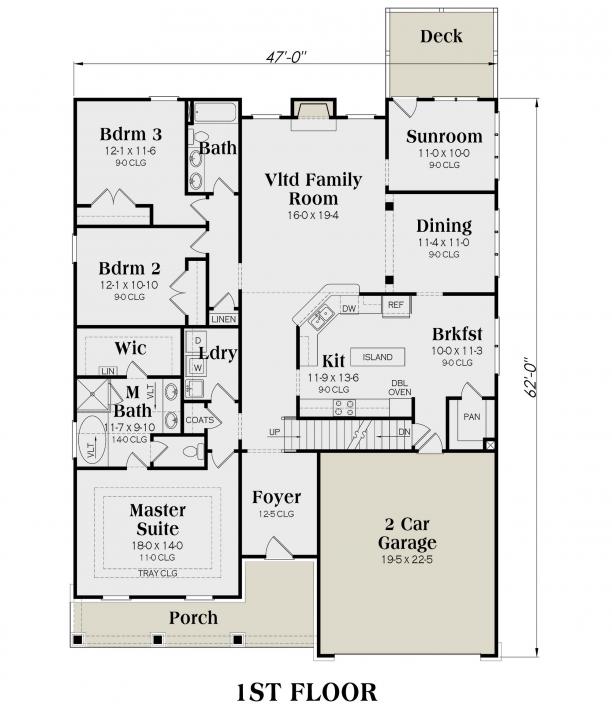

Floorplan 1
Images Copyrighted by Designer

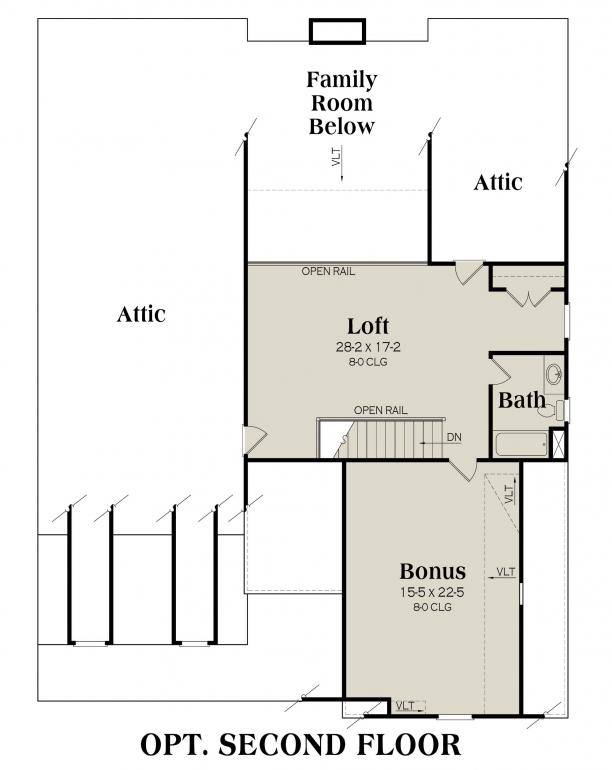

Floorplan 2
