House Plan 009-00131
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Garage Type
Front Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,954 sq. ft. |
| First Floor: | 1,687 sq. ft. |
| Second Floor: | 1,267 sq. ft. |
| Garage: | 416 sq. ft. |
| Basement: | 1,653 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 4 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 42ft. |
| Depth: | 58ft. |
| Height: | 33ft.-2in. |
| Foundation: | Slab
Unfinished Basement |
| Main Roof Pitch: | 9:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
14-8
x 13-2
x 8
|
| Bedroom 3: |
13-4
x 13
x 8
|
| Bedroom 4: |
13-4
x 13
x 8
|
| Bedroom 5: |
19-5
x 13
x 8
|
| Breakfast: |
9-11
x 13
x 9
|
| Dining Room: |
14-8
x 13
x 9
|
| Family Room: |
14-8
x 18-6
x 9
|
| Foyer: |
4-10
x 7-9
|
| Garage: |
19-5
x 20-9
|
| Kitchen: |
13-4
x 13
x 9
|
| Laundry: |
6-3
x 6-4
x 9
|
| Master Bath: |
11-4
x 10-3
|
| Master Bedroom: |
16-6
x 16-7
x 9-10
|
| Master Closet : |
13-8
x 8-1
x 9
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $800.00
Reproducible: $1,000.00
CAD Files: $2,000.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $300.00
|

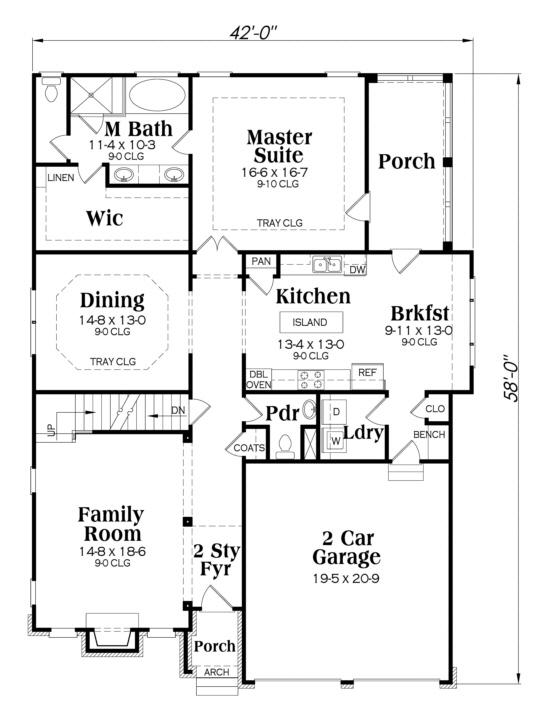

Floorplan 1
Images Copyrighted by Designer

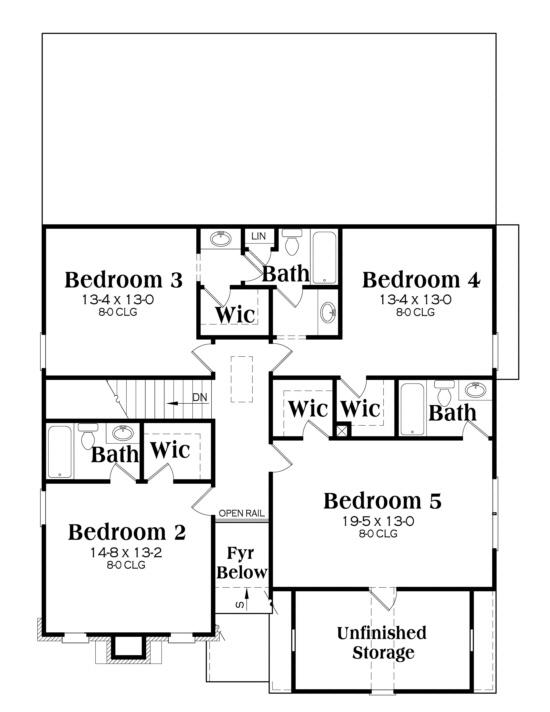

Floorplan 2
