House Plan 009-00123
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry Second Floor
Master Up
Sitting Room
Garage Type
Rear Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,053 sq. ft. |
| First Floor: | 1,007 sq. ft. |
| Second Floor: | 1,046 sq. ft. |
| Garage: | 453 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 35ft. |
| Depth: | 48ft. |
| Height: | 32ft.-10in. |
| Foundation: | Crawl Space
Slab |
| Main Roof Pitch: | 9:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
10
x 12
x 8
|
| Bedroom 3: |
11
x 13
x 8
|
| Breakfast: |
11-5
x 10-8
x 9
|
| Dining Room: |
10-4
x 12
x 9
|
| Family Room: |
18-2
x 19-10
|
| Foyer: |
5-9
x 12
|
| Garage: |
19-5
x 19-9
|
| Kitchen: |
16
x 10-2
x 9
|
| Laundry: |
2-8
x 6-5
x 8
|
| Master Bath: |
10-8
x 9-4
x 8
|
| Master Bedroom: |
15-6
x 13-11
x 10
|
| Master Closet: |
7-4
x 7-4
x 9
|
| Master Sitting: |
8-6
x 9-8
x 8
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $600.00
8 Sets: $675.00
Reproducible: $875.00
CAD Files: $1,750.00
Additional Options
Additional Construction Sets: $40.00
Right Reading Reverse Set: $200.00
|

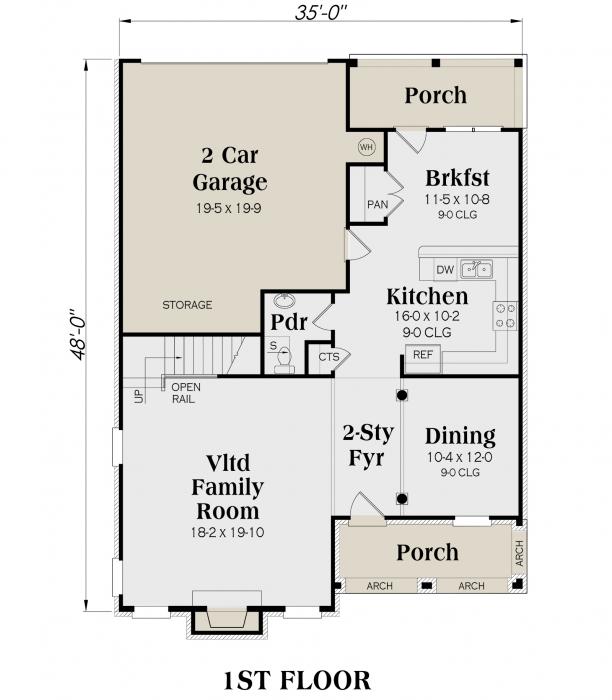

Floorplan 1
Images Copyrighted by Designer

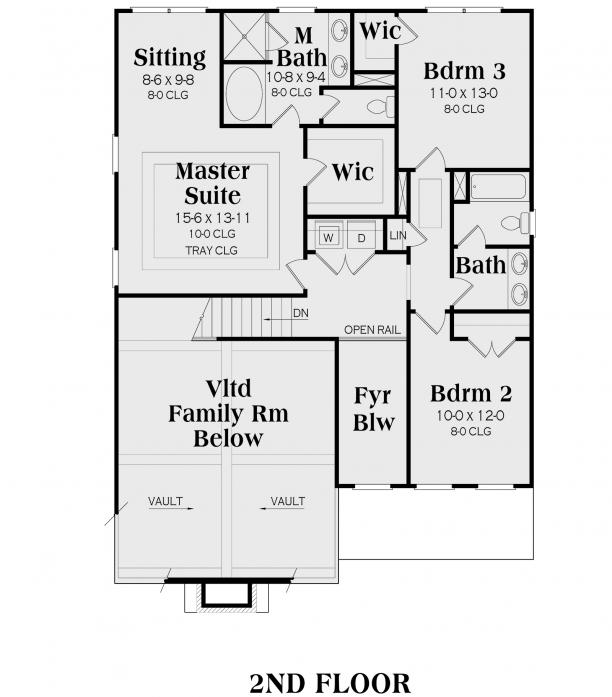

Floorplan 2
