House Plan 009-00116
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Loft
Master On Main Floor
Sitting Room
Garage Type
Rear Entry
Porch Type
Front
|
|
| Square Footage: | 2,307 sq. ft. |
| First Floor: | 1,365 sq. ft. |
| Second Floor: | 942 sq. ft. |
| Entry: | 1,365 sq. ft. |
| Garage: | 407 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 35ft. |
| Depth: | 56ft. |
| Height: | 31ft.-4in. |
| Foundation: | Slab |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
13-2
x 12
x 8
|
| Bedroom 3: |
11
x 12-4
x 8
|
| Bedroom 4: |
11
x 17
x 8
|
| Breakfast: |
14-9
x 10-8
x 9
|
| Dining Room: |
11
x 11
x 9
|
| Family Room: |
14-7
x 15-3
|
| Foyer: |
7-2
x 11
|
| Garage: |
19-5
x 19-9
|
| Kitchen: |
11
x 10
x 9
|
| Laundry: |
6
x 6
x 9
|
| Loft: |
14-9
x 10
x 8
|
| Master Bath: |
9-5
x 9-4
x 9
|
| Master Bedroom: |
15-8
x 14-2
x 9
|
| Master Closet 1: |
6
x 6-8
x 9
|
| Master Sitting: |
11
x 8
x 12
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $625.00
8 Sets: $700.00
Reproducible: $900.00
CAD Files: $1,800.00
Additional Options
Additional Construction Sets: $40.00
Right Reading Reverse Set: $200.00
|

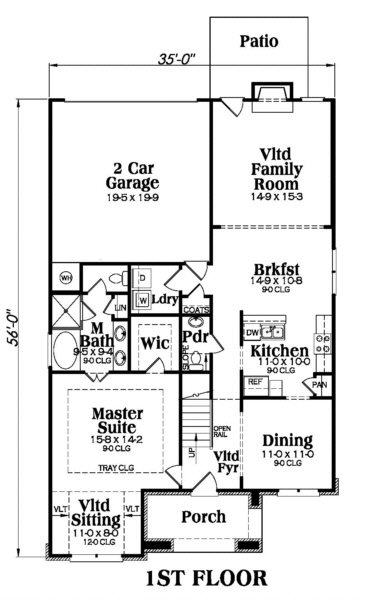

Floorplan 1
Images Copyrighted by Designer

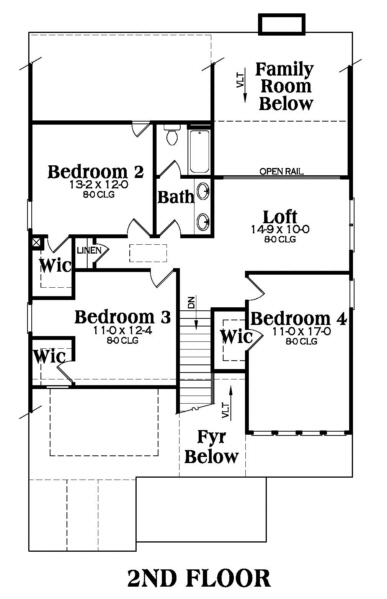

Floorplan 2
