House Plan 009-00086

View the Floorplan



If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

This house plan is the perfect home design for a family of any size. This ranch style house plan offers many features for today's trends in home building. The family room is a pure example of this plans great features, with its built-in shelves on both sides of the fireplace, vaulted ceilings, and the French doors leading to the back deck.

Features

live chat
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Split Bedrooms

Garage Type
Side Entry

Porch Type
Front


Square Footage:1,861 sq. ft.
First Floor:1,861 sq. ft.
Garage:419 sq. ft.
Basement:1,861 sq. ft.
Floors:1
Bedrooms:3
Bathrooms:2
Garages:2 car
Width:47ft.
Depth:55ft.
Height:24ft.-6in.
Foundation:Unfinished Basement
Main Roof Pitch:8:12
Additional Specs:Show Room Dimensions

More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page

Pricing

5 Sets: $575.00
8 Sets: $650.00
Reproducible: $850.00
CAD Files: $1,700.00

Additional Options

Additional Construction Sets: $40.00
Right Reading Reverse Set: $200.00

Add To Cart

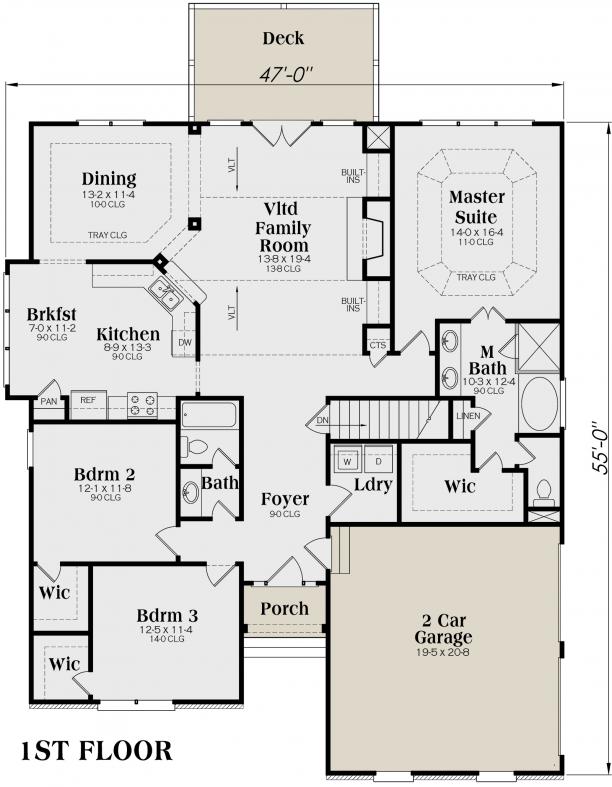

Floorplan

Images Copyrighted by Designer

floor plan
